HEWLETT-PACKARD HP 9880 MASS MEMORY SUBSYSTEM
The HP 9880 was designed to provide mass storage for the 9830 computer/caclulator. It contained a fixed disc platter and supported a removable disc platter, each with 2.4 megabytes of data storage.

It was composed of

  • HP 9867B Dual Platter Mass Memory Drive
  • HP 13215A Power Supply
  • HP 11305A Controller
  • HP 11273B ROM and Cassette
  • HP 12869A Memory Cartridge
An HP 11304A Cart was optional.

I'm interested in locating and acquiring these devices. If you have this equipment, or might know someone who does, please send me an e-mail!

SPECIFICATIONS
DATA CAPACITY AVAILABLE TO USER:
  9880A9880B
Bytes 2,433,024 4,866,048
Bytes per Word 2 2
Words per Record 256 256
Number of Records 4,752 9,504 (4752/platter)
Maximum Number of Files 768 1,536 (768/platter)

SPEED:
  9880A9880B
Average Access Time 47.5 ms 42.5 ms
Data Transfer Time 5.7 ms per 512 bytes 5.7 ms per 512 bytes

Data taken from the April 1974 issue of the Hewlett-Packard Journal.

TECHNICAL SALES BROCHURE

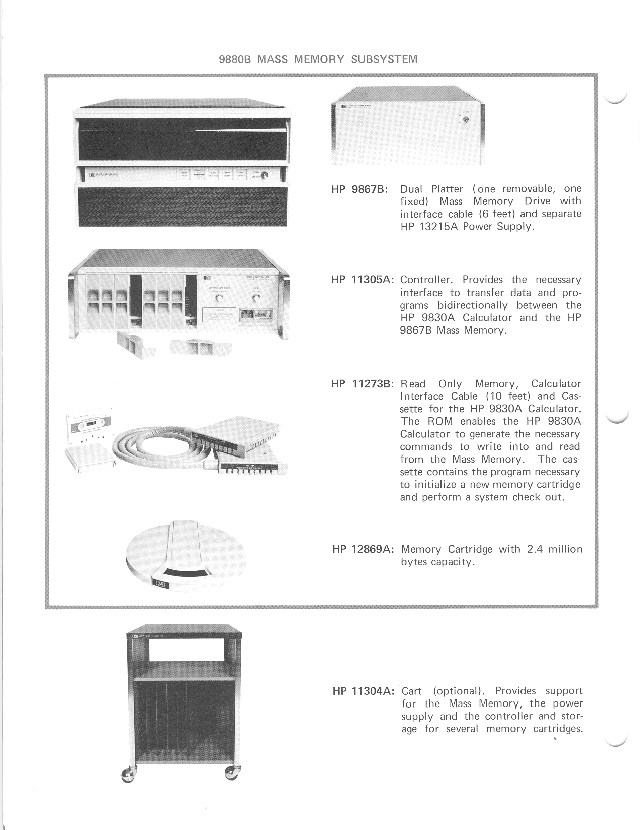

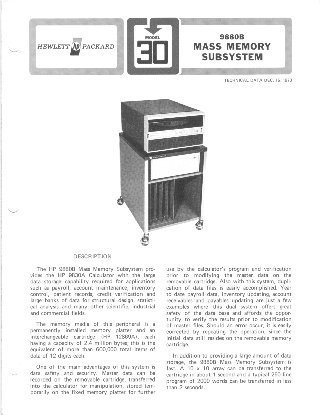

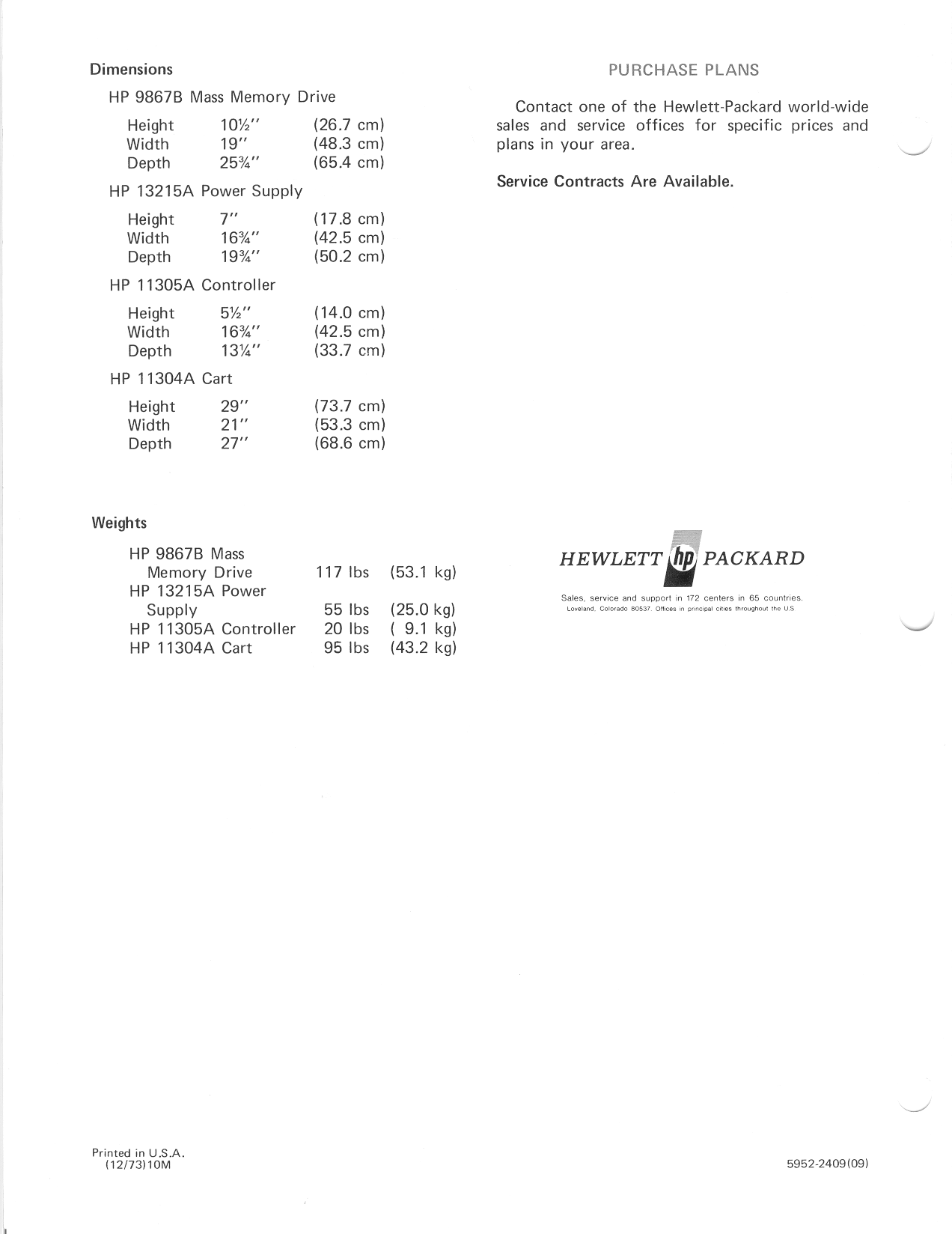

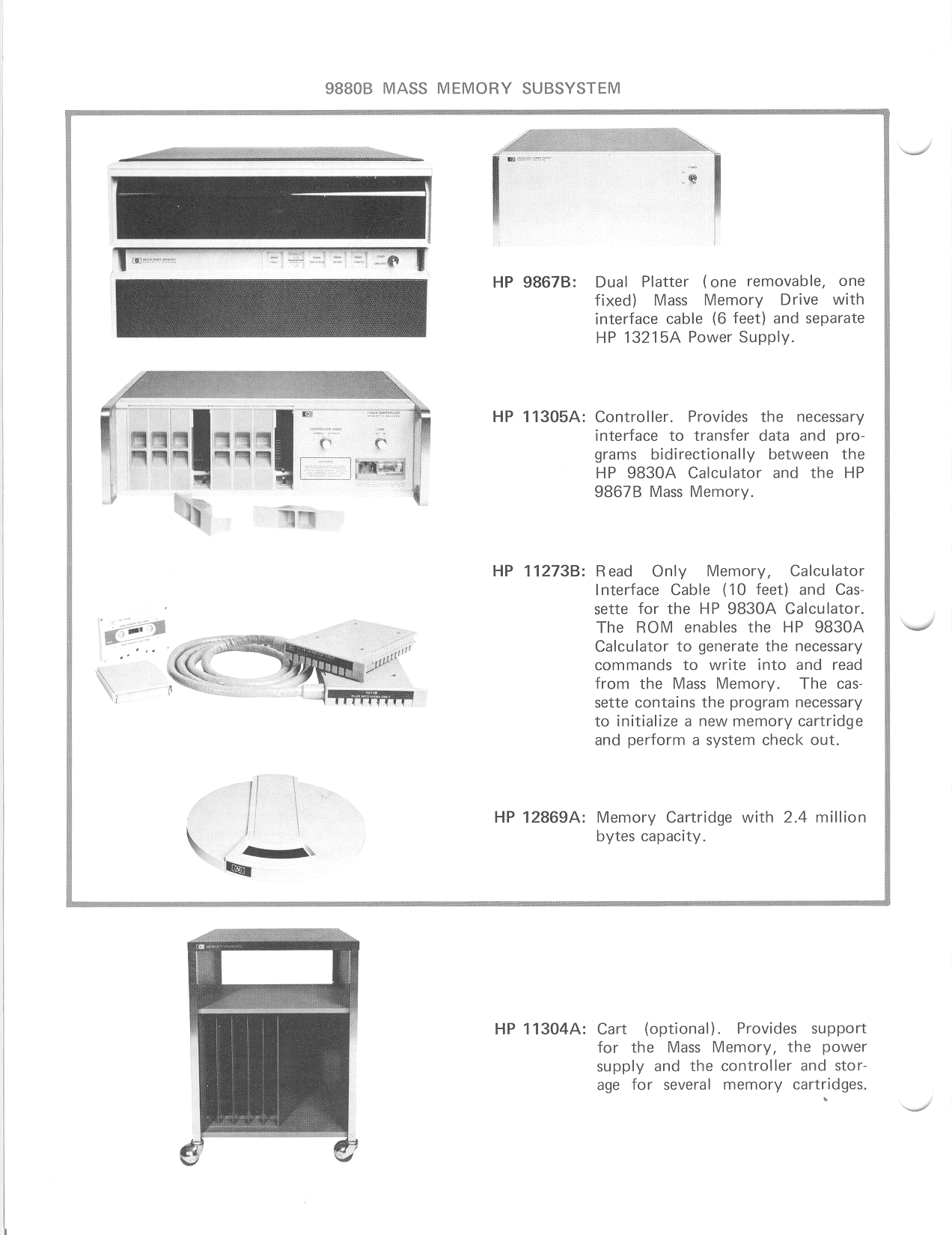

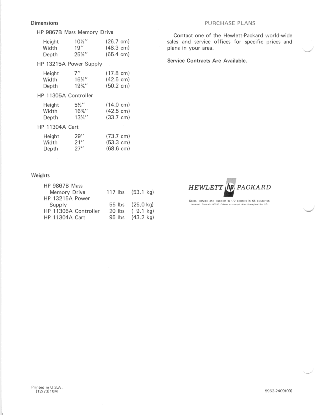

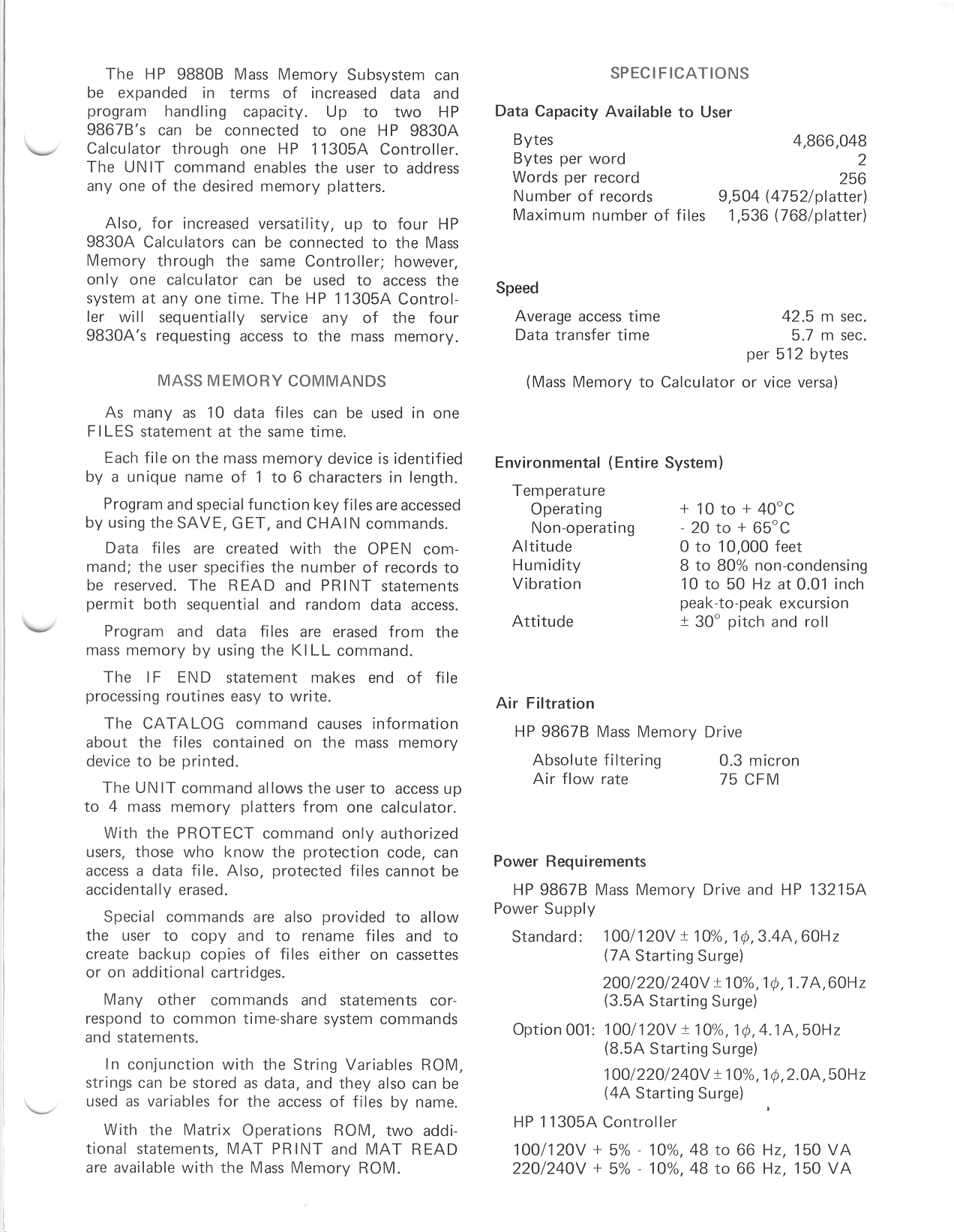

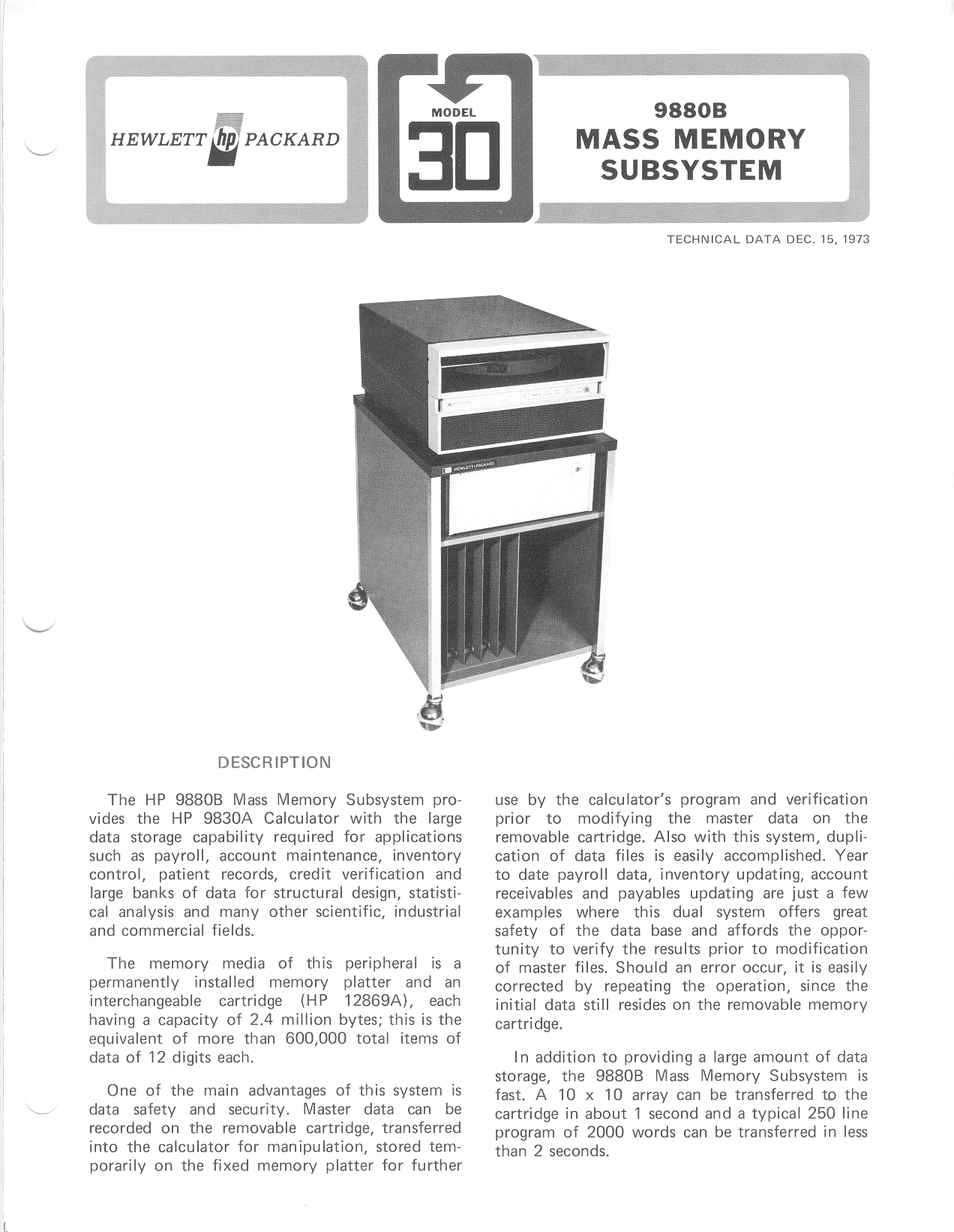

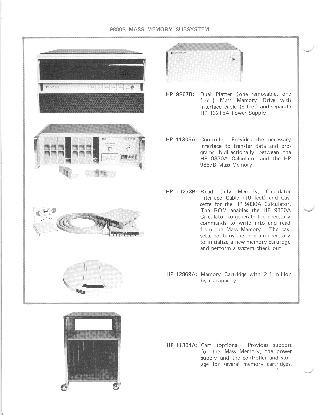

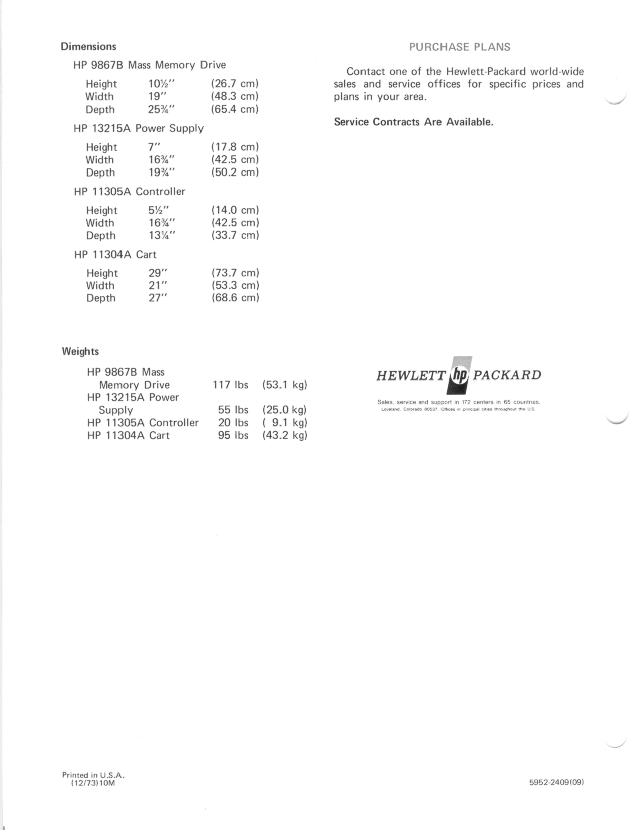

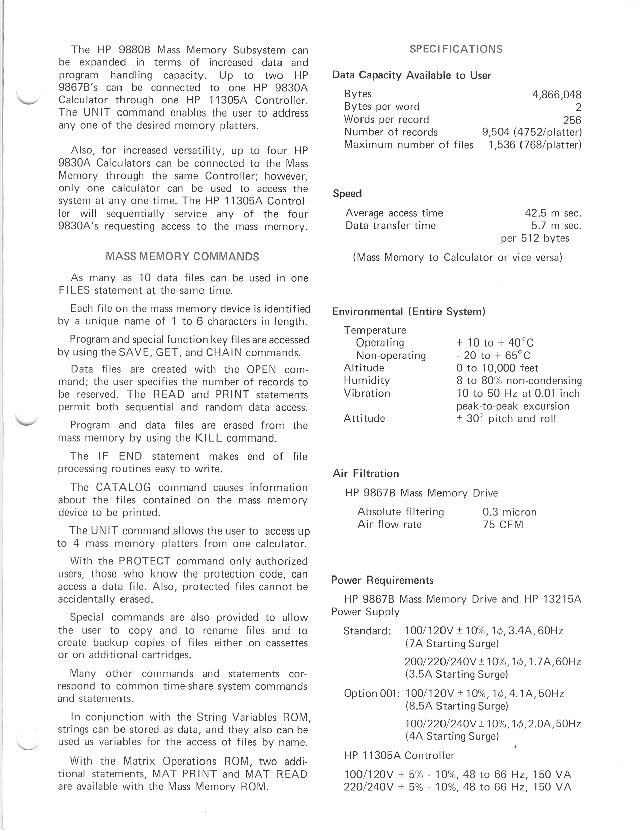

The following four pages are scans of a technical data sales brochure from December of 1973.


[Medium]   [Large]

[Medium]   [Large]


[Medium]   [Large]

[Medium]   [Large]
