HEWLETT-PACKARD HP 11C DISASSEMBLY

Although vintage Hewlett-Packard calculators were designed and built very well, occasionally they do need repair.

The following documents the initial disassembly of an HP-11C (Voyager series) calculator. It was built in 1985.

STEP 1

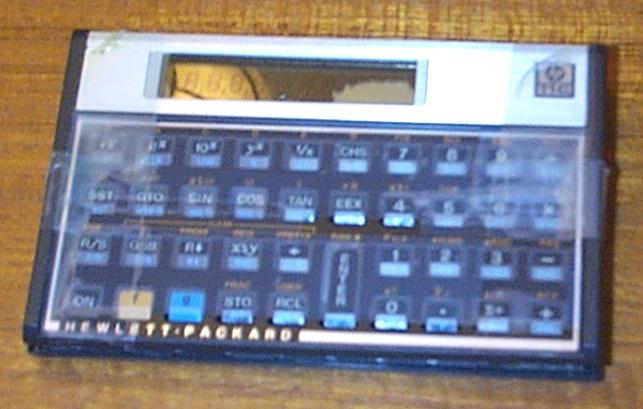

The keyboard is covered with cellophane tape to keep the keys in place when the two halves are separated.

STEP 2

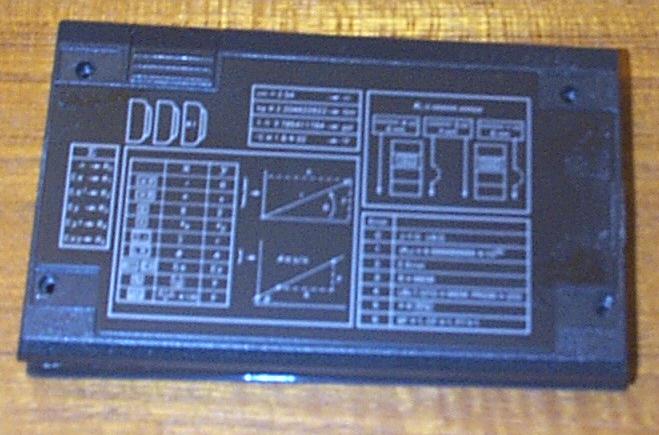

On the back, peel up the rubber "foot" at each corner and remove the screw underneath.

STEP 3

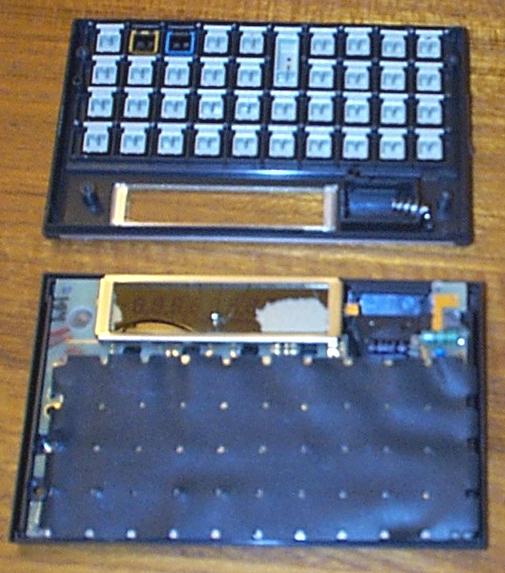

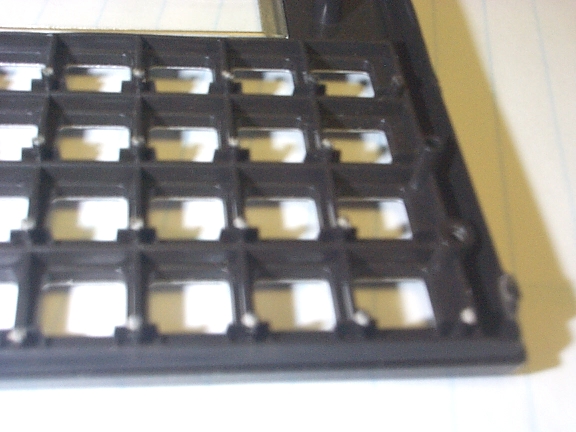

Carefully separate the top and bottom halves of the calculator.

STEP 4

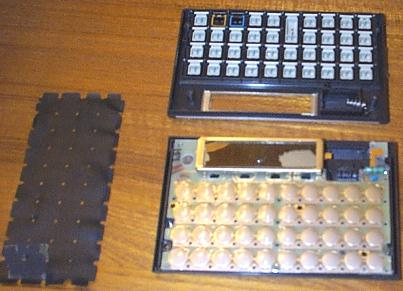

Remove the rubberized sheet between the keys and the printed circuit board.

STEP 5

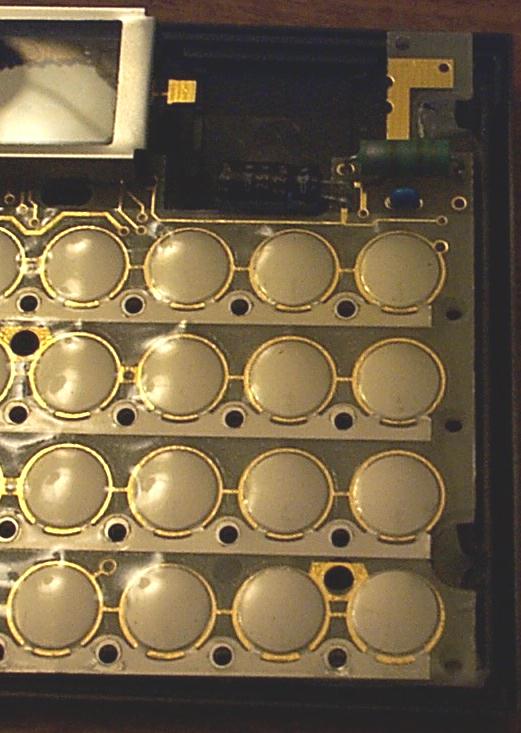

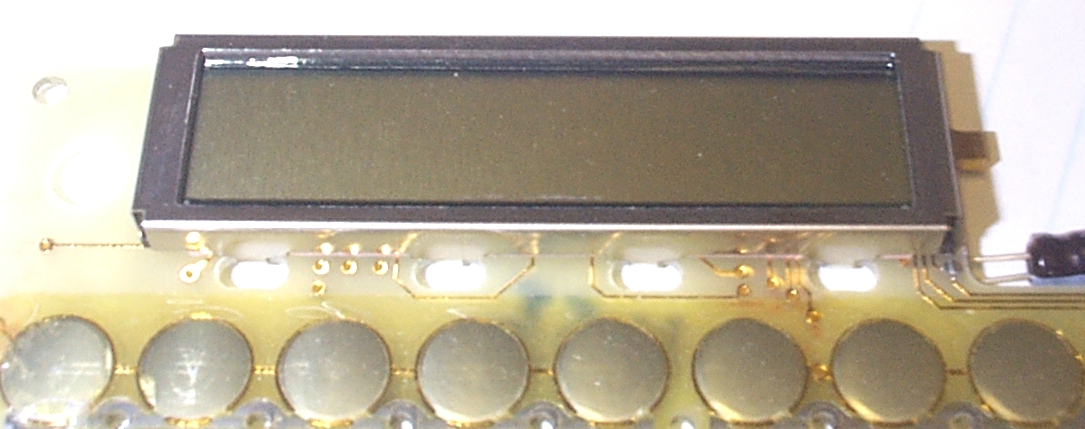

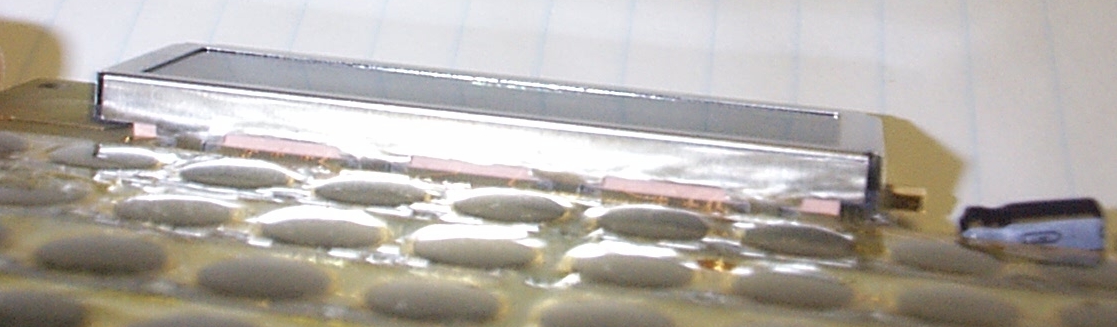

Here's a close-up of the domed keypad, built into the circuit board.

Sometimes cleaning around an intermittent keypad will help cure entry problems.

STEP 6

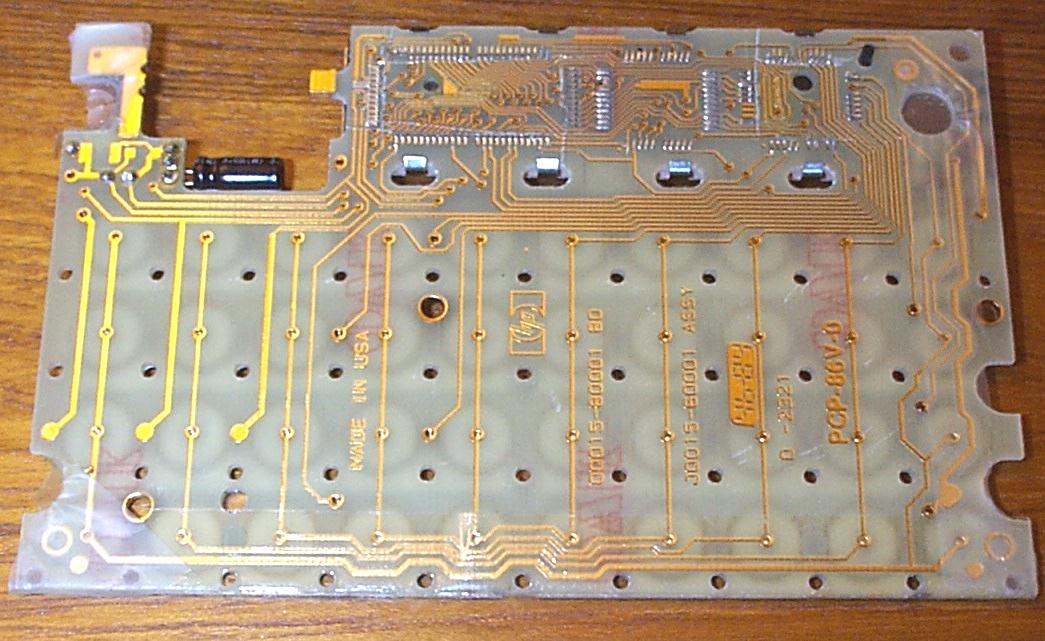

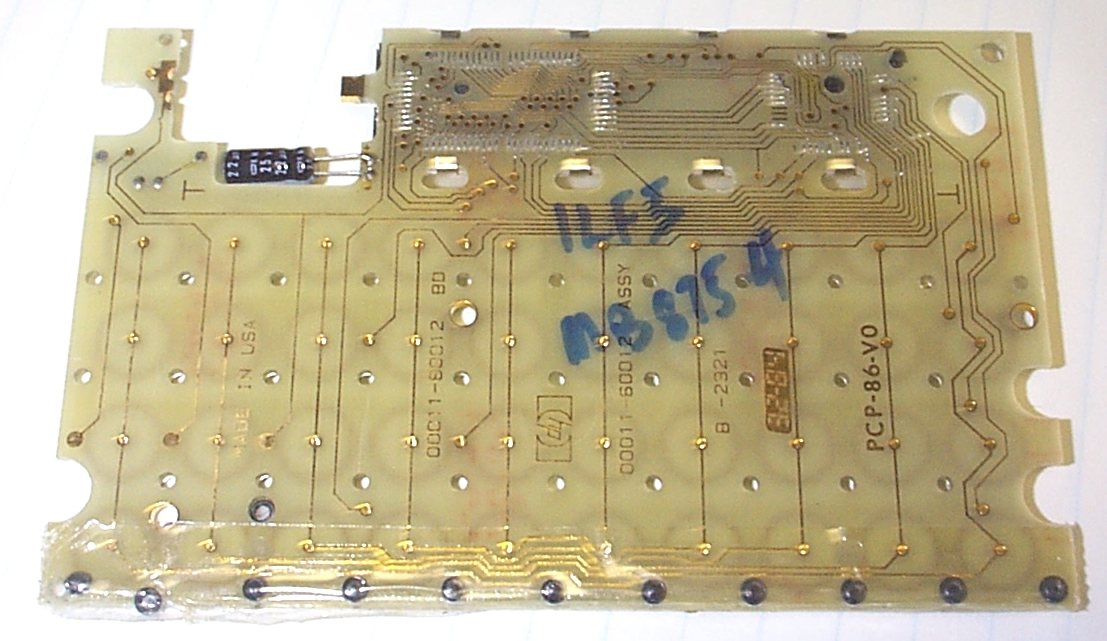

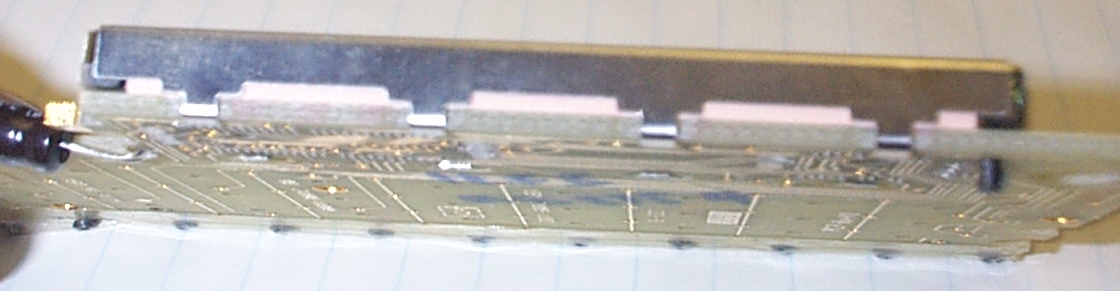

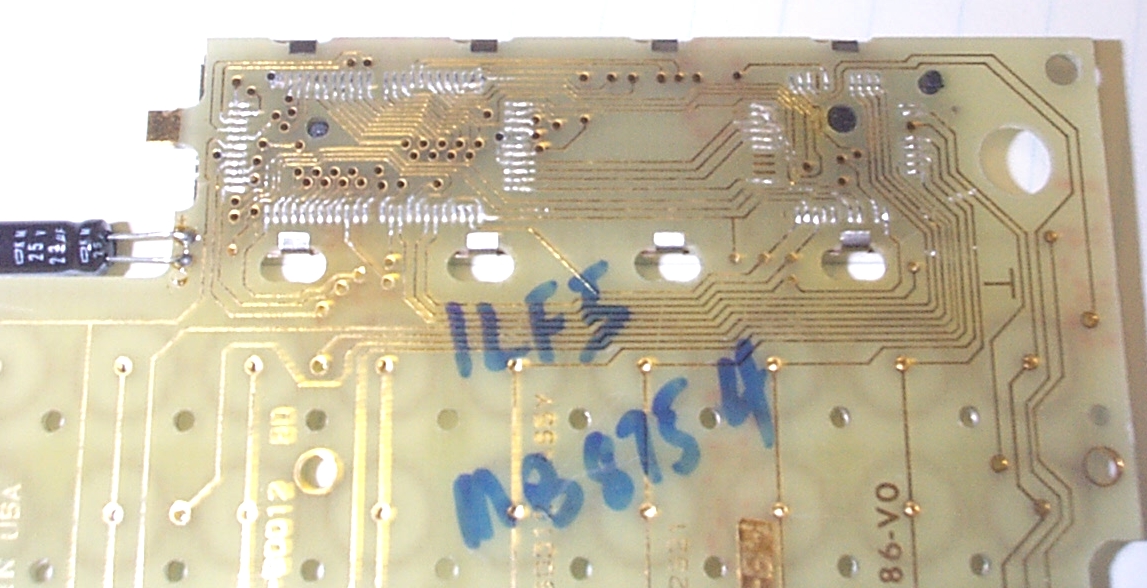

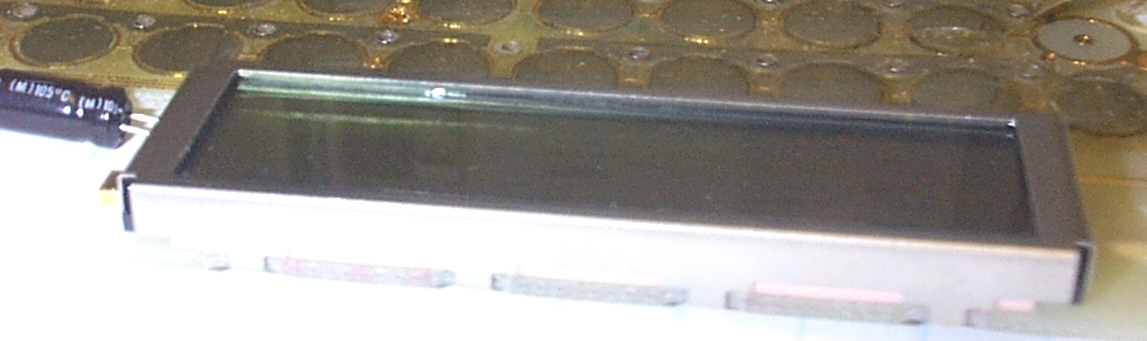

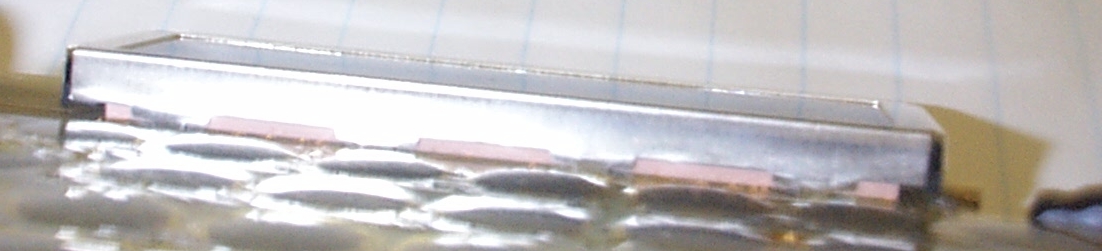

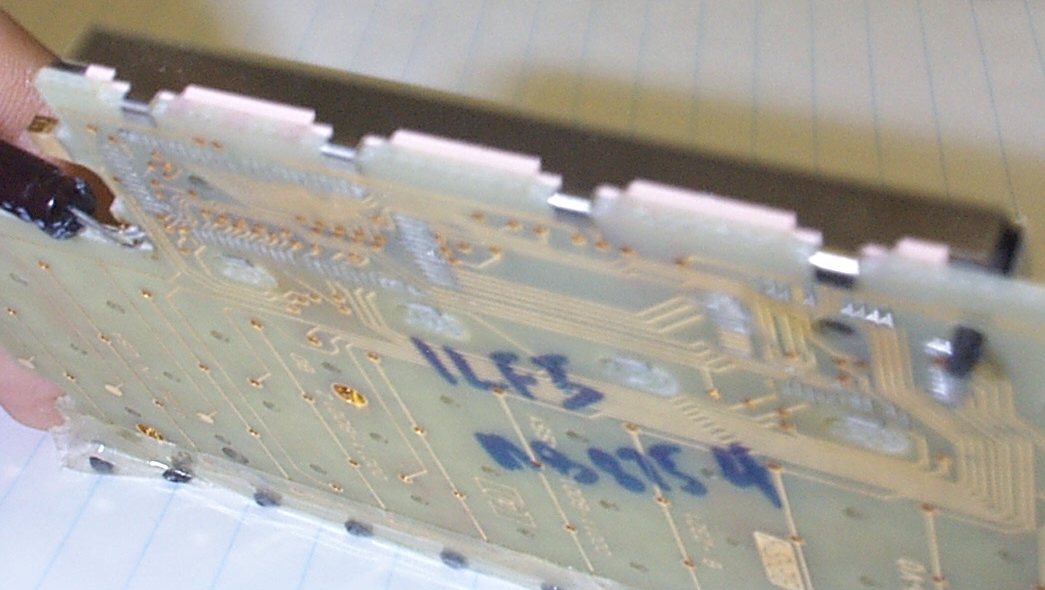

The entire printed circuit board may be removed from the back shell for further troubleshooting and repair or replacement.
