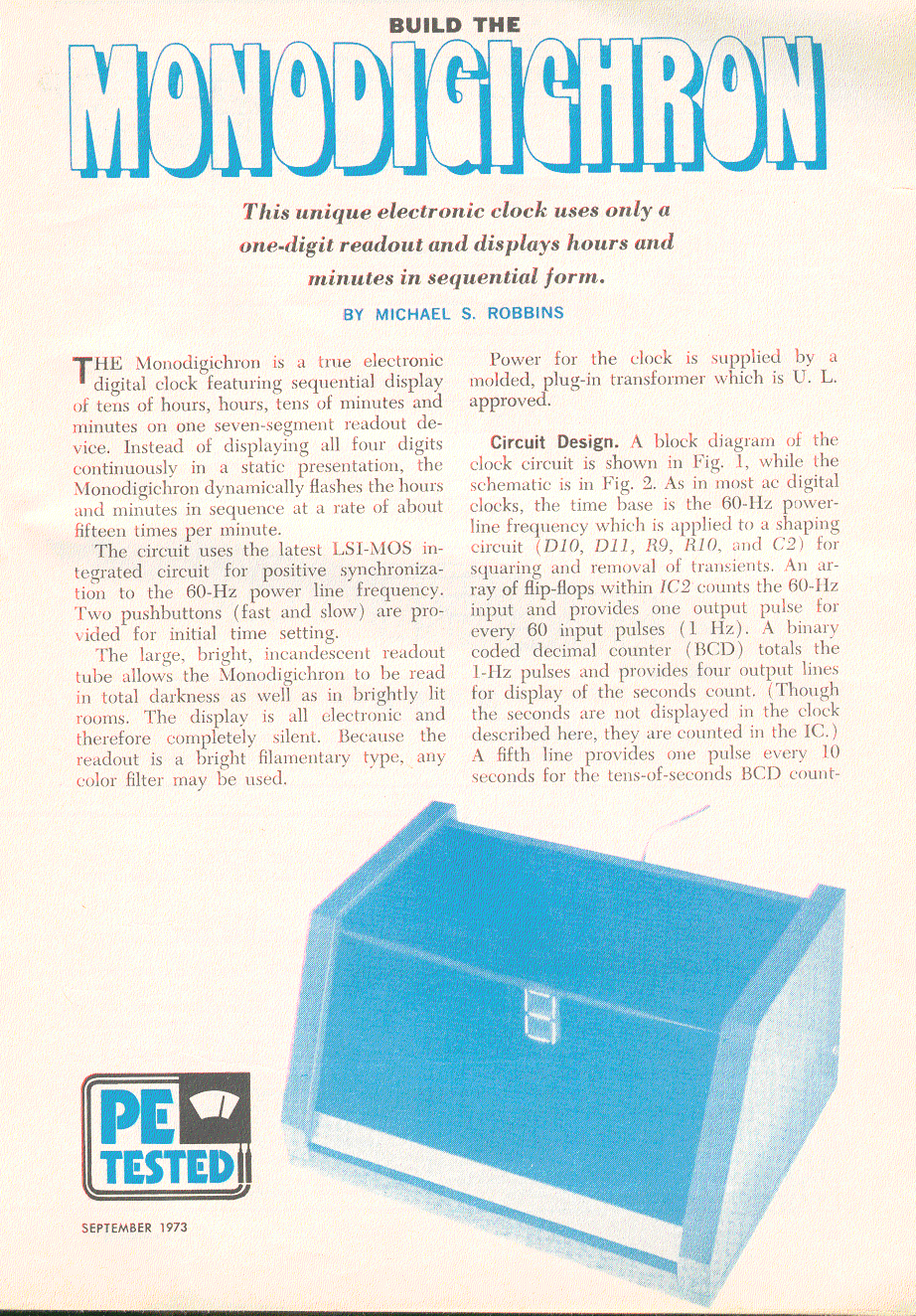

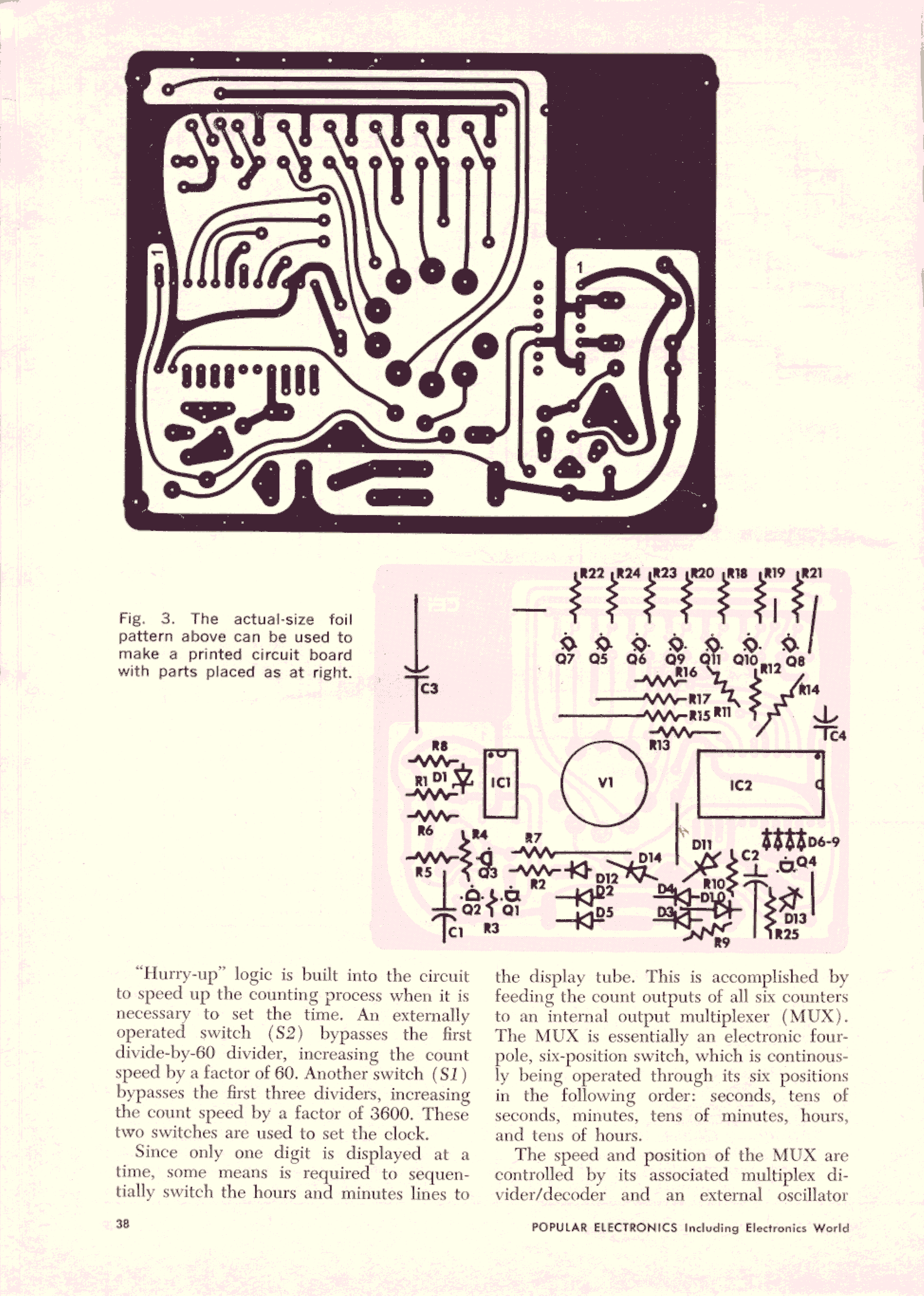

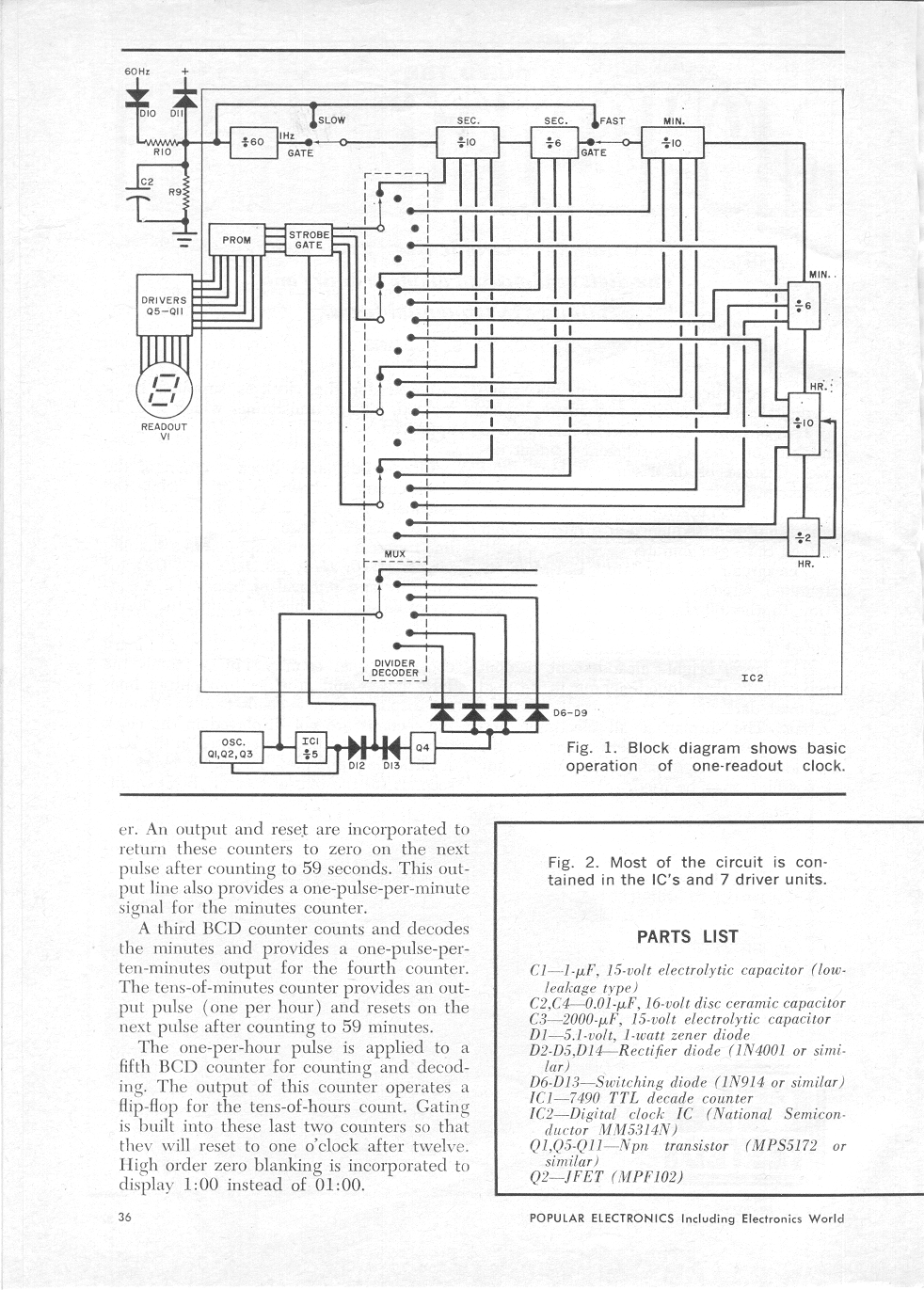

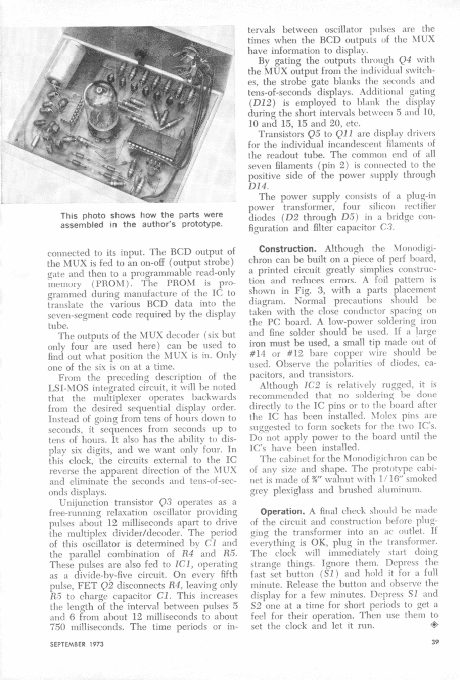

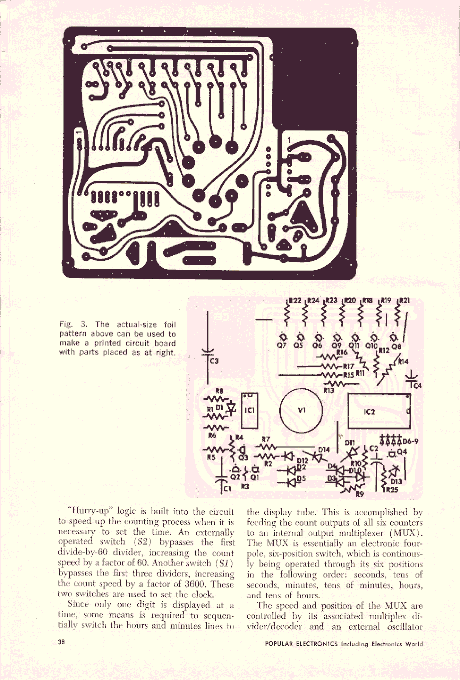

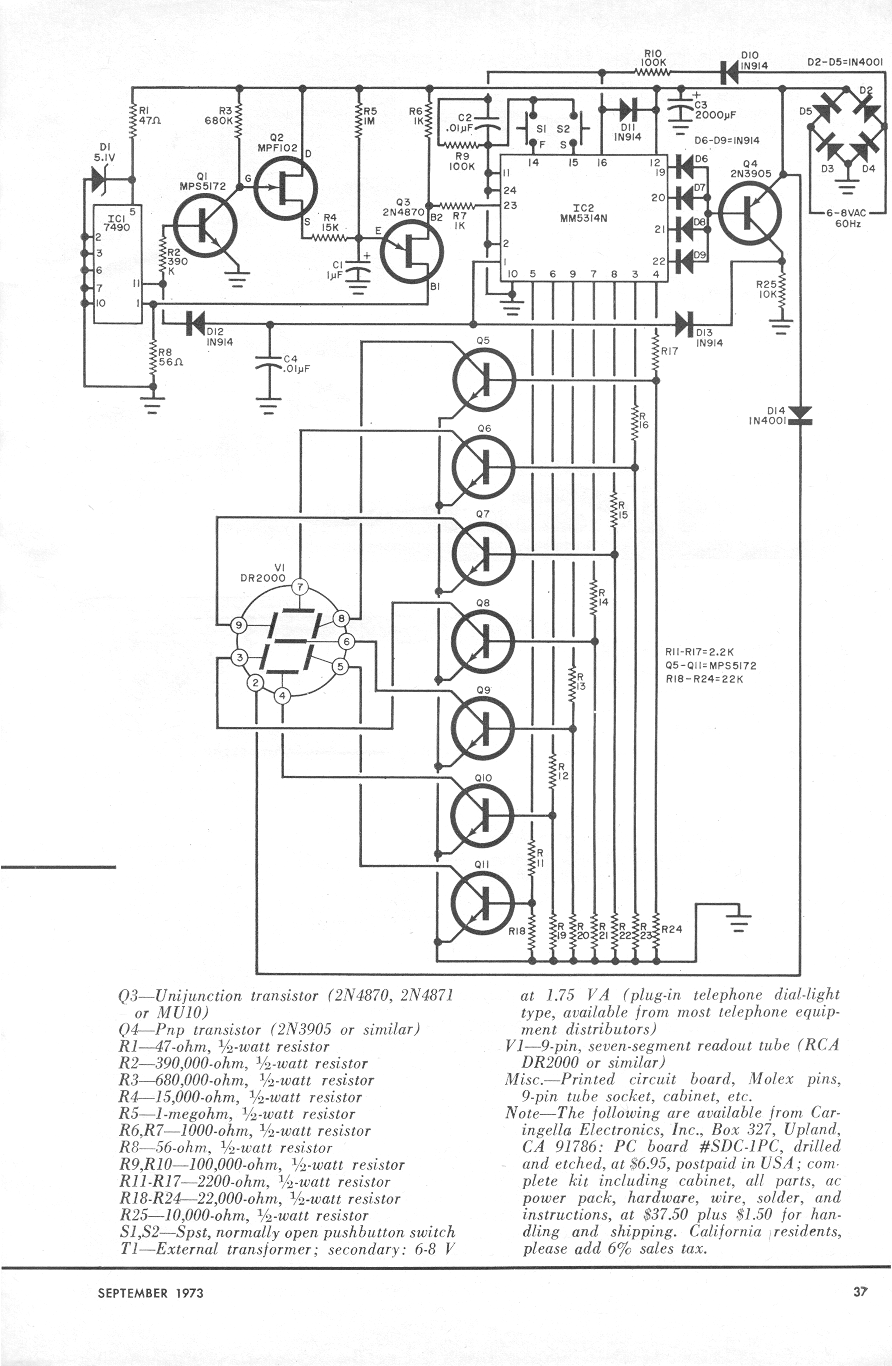

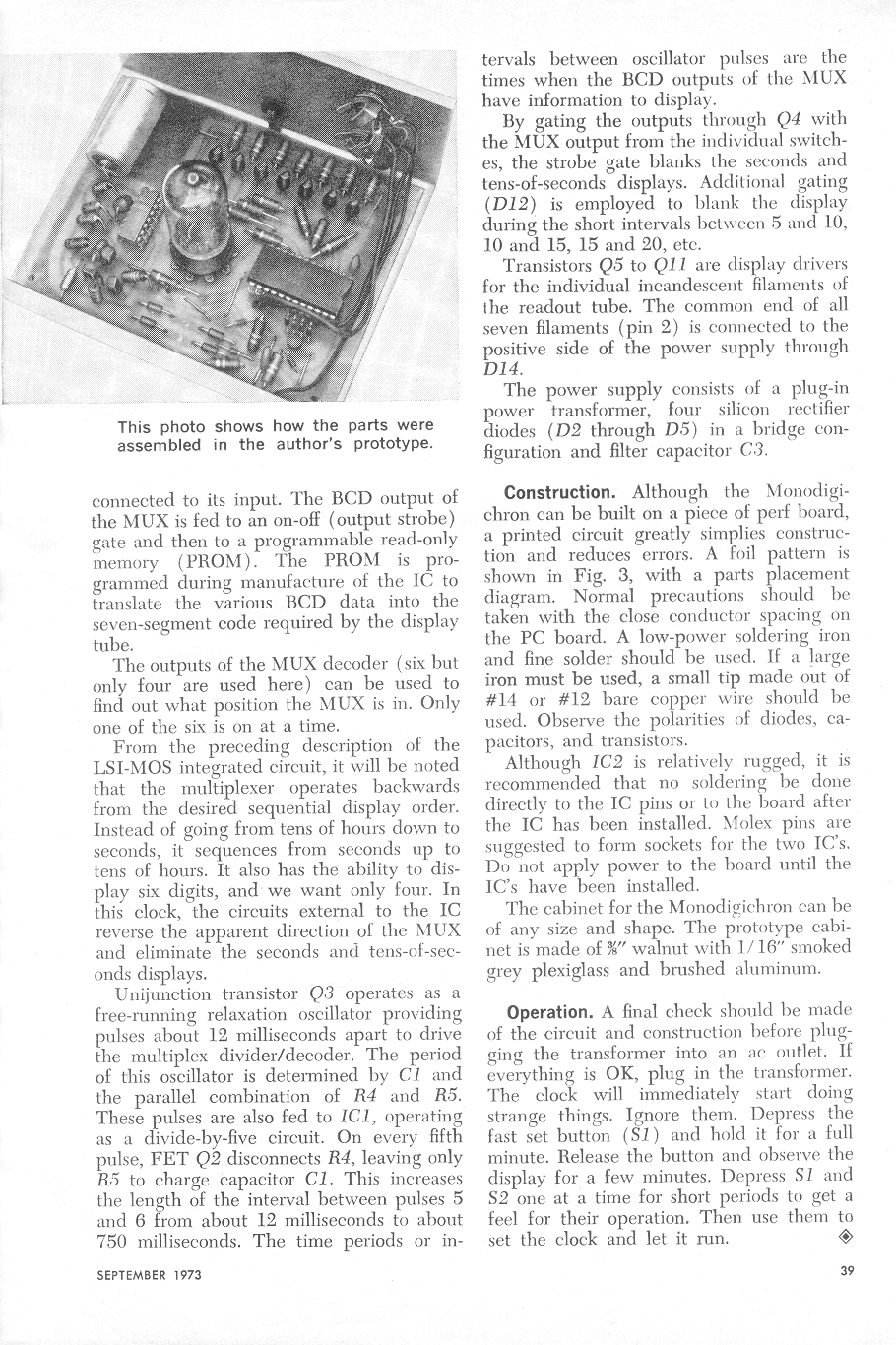

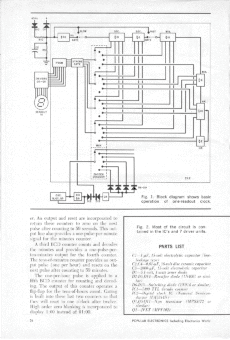

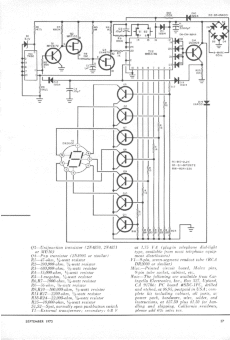

This construction article appeared in the September 1973 issue
of Popular Electronics magazine. It is a design for a
single-digit electronic clock using a National Semiconductor MM5314
digital clock IC
and a seven-segment readout tube (RCA DR2000 or equivalent).
|
