FAIRCHILD CRYPTOLINE SATELLITE ENCRYPTOR
Click any photo for a larger version.

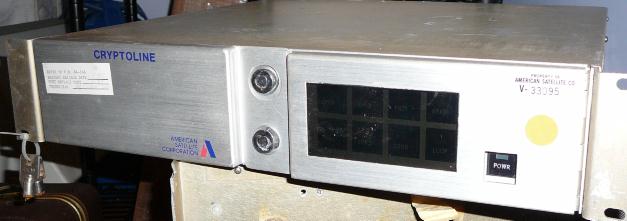

The front of the rack-mount chassis has a series of annuciators under a locked panel, secured by a pair of tubular locks.

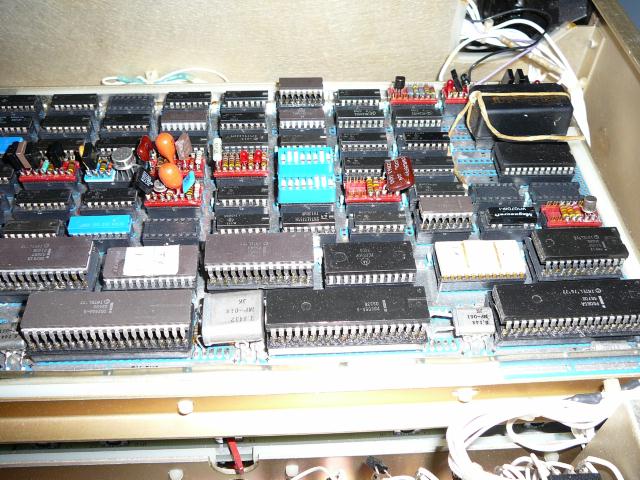

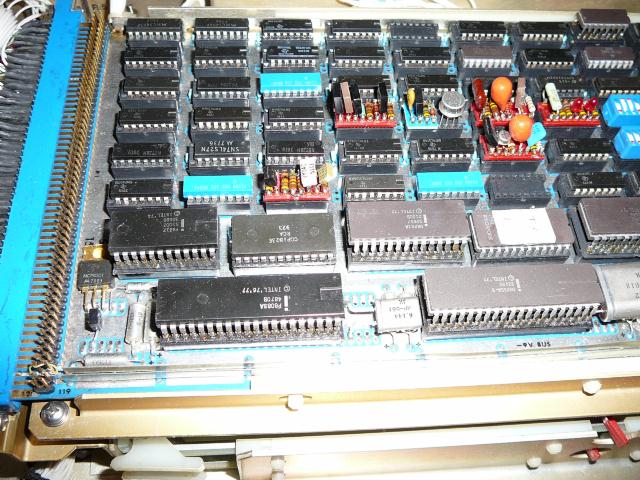

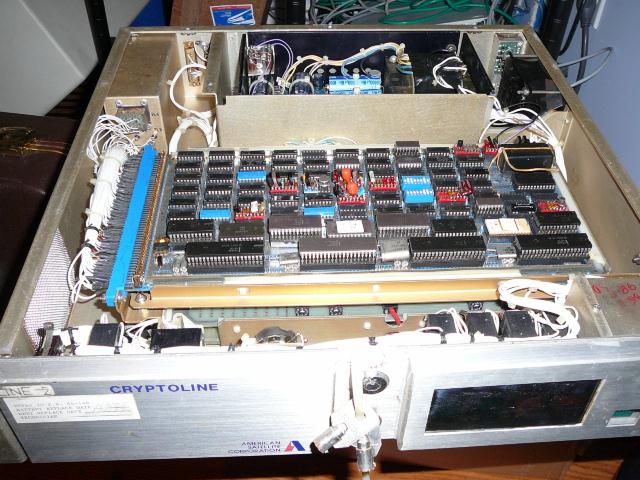

The main digital board has dual Intel 8085 processor sections, one for transmit and one for receive.

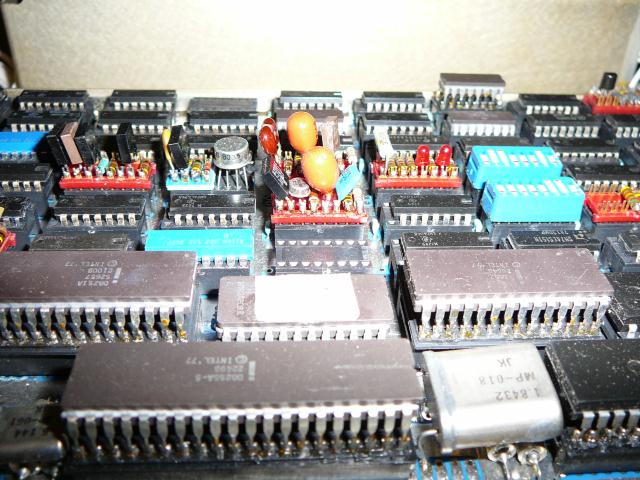

Nearly everything is socketed, including some interesting hand-built combinations of resistors, capacitors, LEDs and so on.
